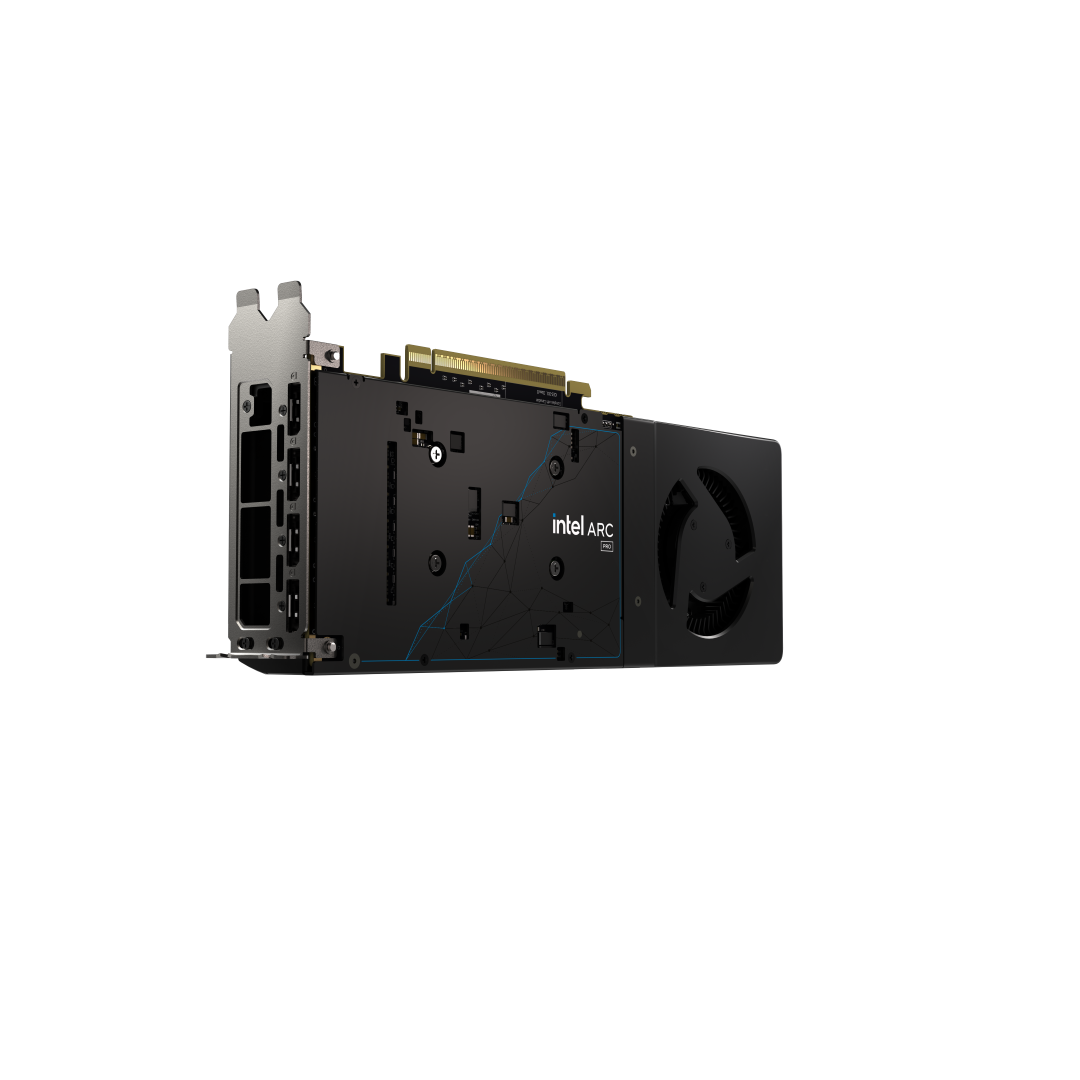

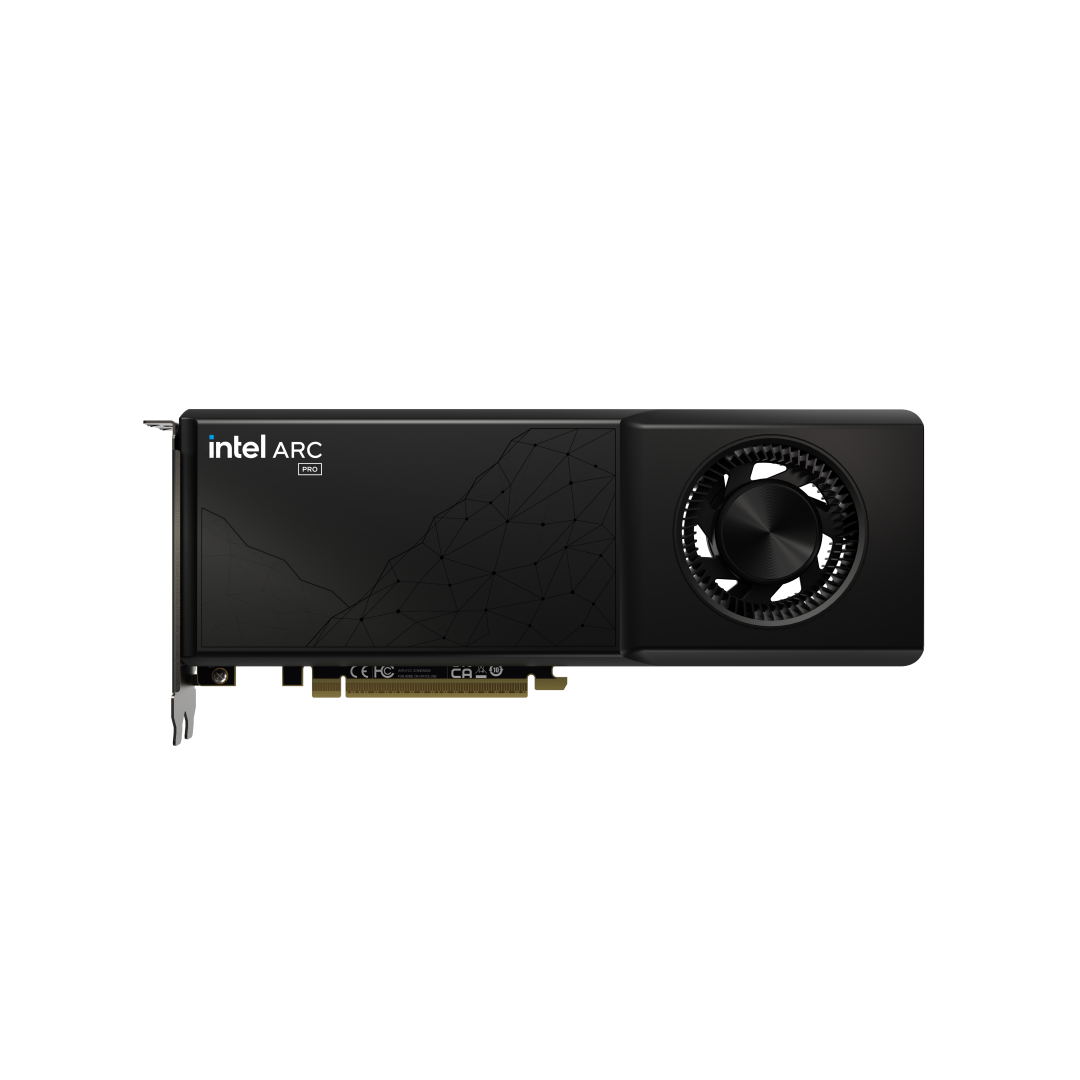

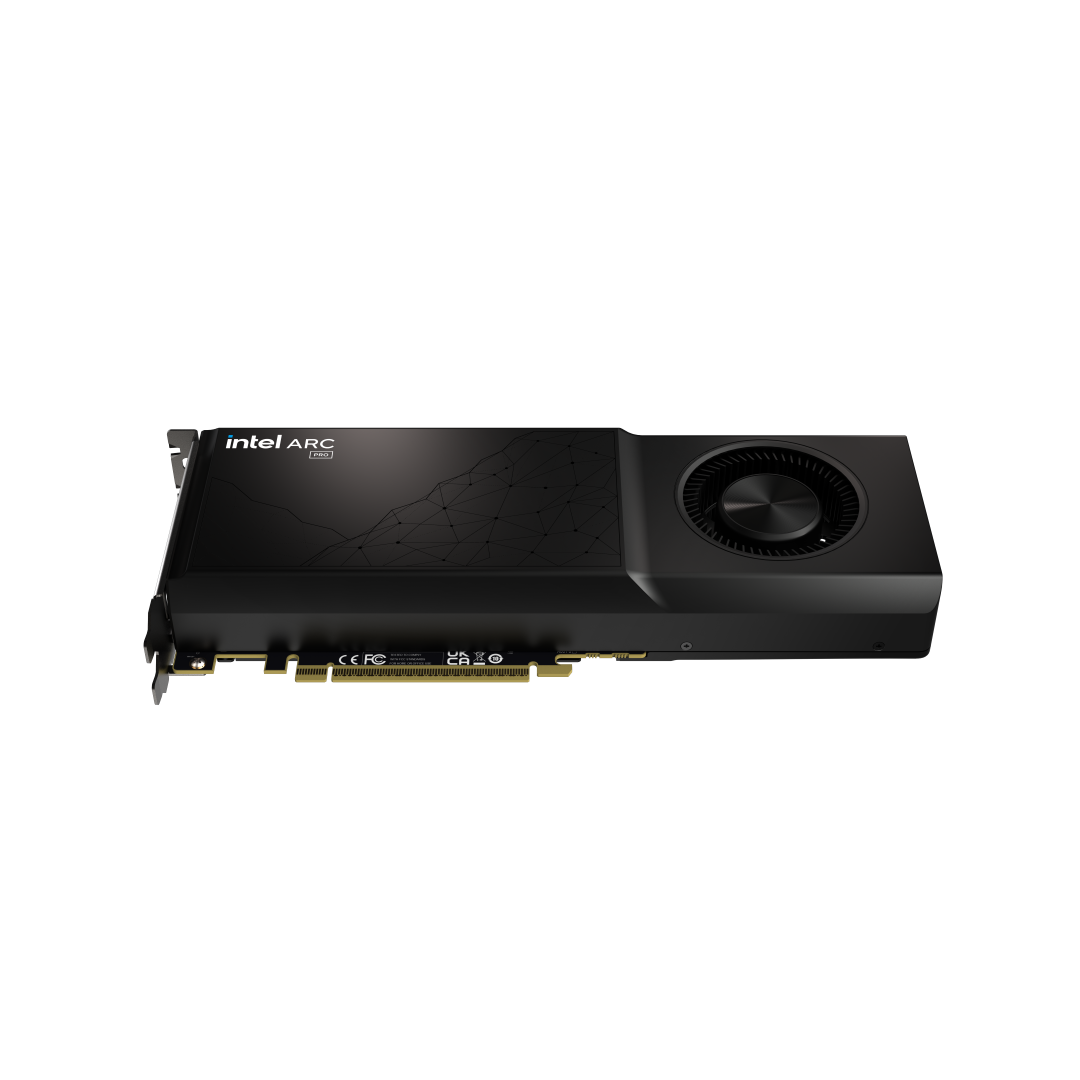

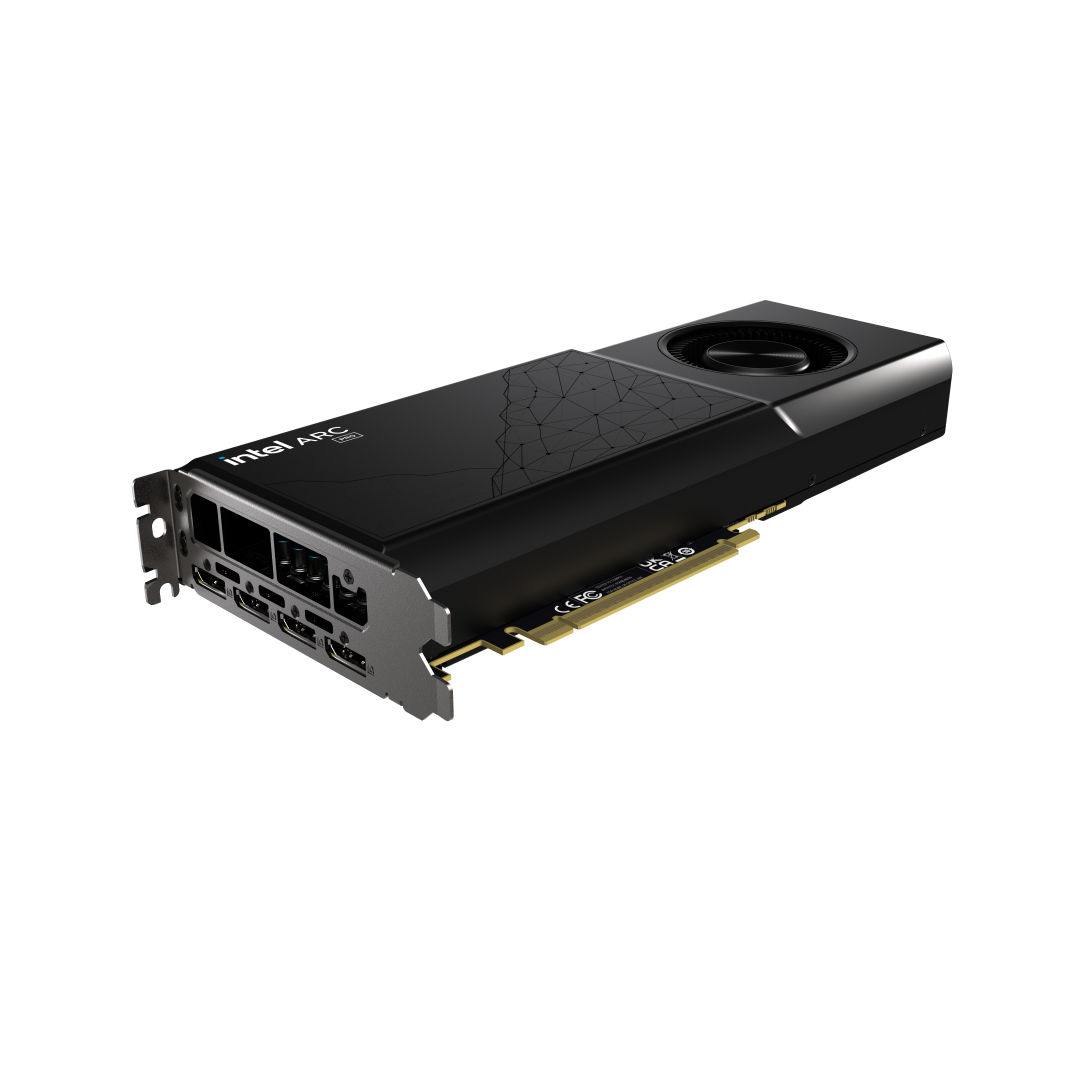

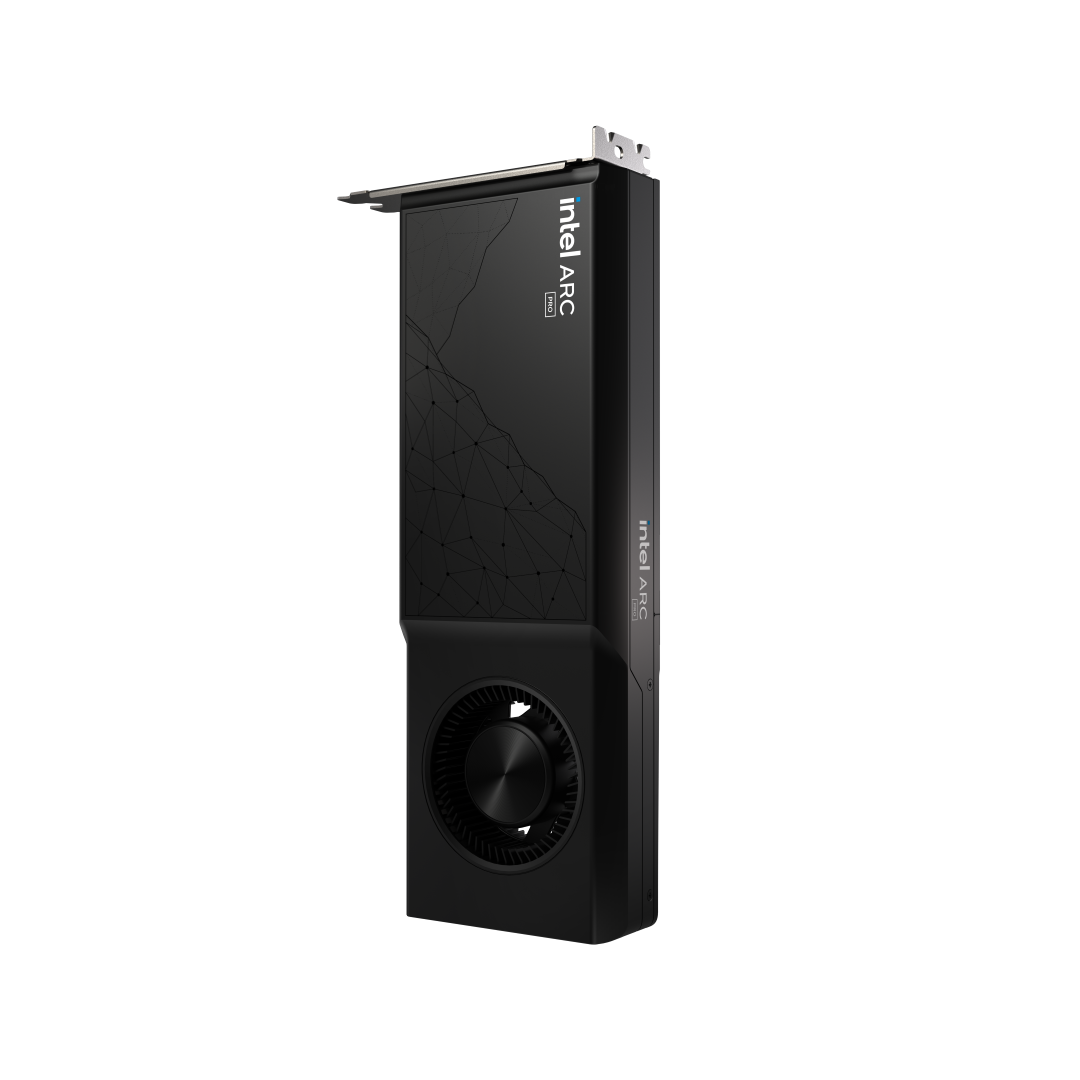

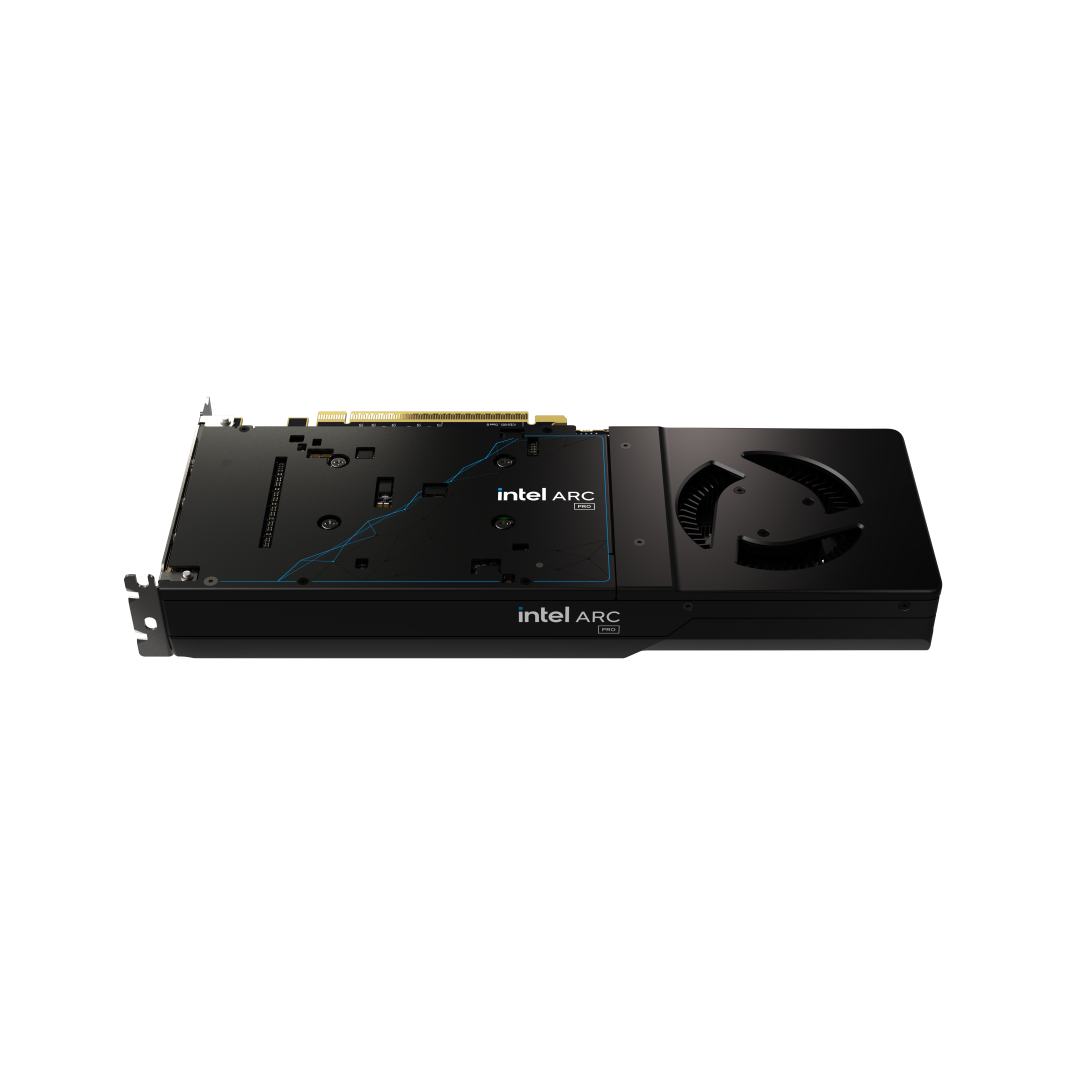

Intel®Arc™ Pro B60 GDDR6 24GB

SKU Number	100A002-00300C2
Product Name	Intel® Arc™ B60 GDDR6 24GB
GPU	Intel® Arc™ B60, Intel Xe2 Graphics Core Architecture
Bus Support	Gen 5.0 x16 (x8 Electrical), with 4.0 Backwards Compatibility
Graphics Clock	2400 MHz
Xe Cores	20
Ray Tracing Units	20
Intel XMX Engines	160
GPU Peak Tops (Int8)	197
Memory	24GB/192bit GDDD6, 19Gbps
Memory Bandwidth	456 GB/s
Display Support	DisplayPortx 4
DisplayPort 2.1 Support	Yes, UHBR13.5
External Power	1 x 8 pin
Cooling Solution	Blower Fan / 2 ball bearing
Form Factor	2 slot, ATX
Board Dimension	260 x 130 (mm)
Board Power	200W
System Requirement	10th Gen Intel® Core™ Processors or newer with compatible MBs supporting Resizable BAR/ AMD Ryzen™ 3000 Series Processors or newer with compatible motherboards supporting Smart Access Memory PCI-Express® compliant motherboard with a x16 PCIe slot 600W or greater power supply with 1x 8-pin PCIe power connector 8GB of system memory minimum, 16GB recommended Windows® 11 64-bit or Windows® 10 64-bit For additional details please visit www.intel.com/ArcQuickStart

Specifications
