Illuminate Your Gaming Experience
Pure White with ARGB Light

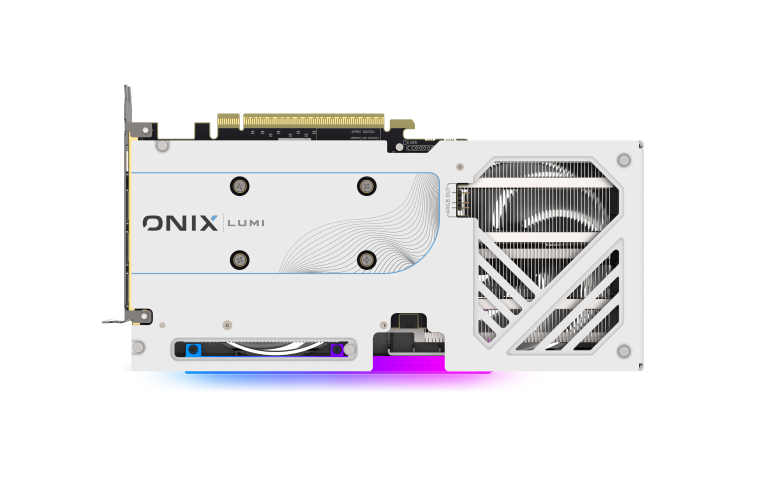

Sleek Pure White Design with Durable Aluminum Backplate
The ONIX LUMI B580 is crafted for users who appreciate minimalism and elegance, with an all-white design that complements modern aesthetics. The premium aluminum backplate not only enhances durability but also provides a stylish, clean look that integrates seamlessly into white-themed setups, making it the perfect choice for enthusiasts who priorities both form and function.

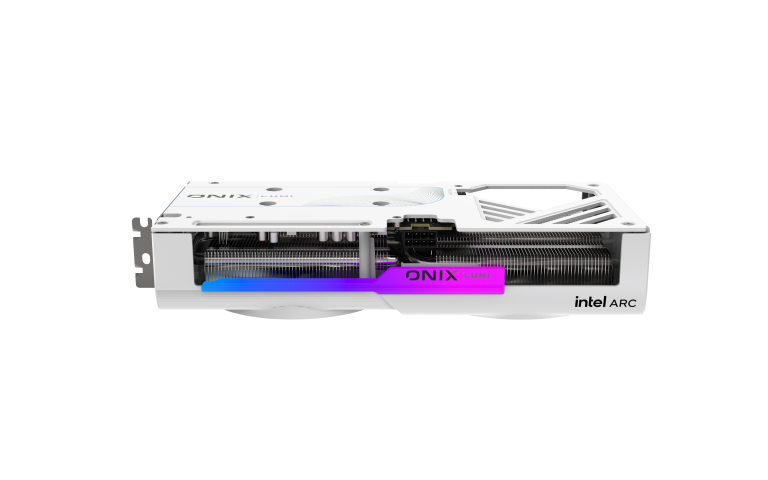

Dynamic LUMI ARGB Lighting
Designed to elevate your system’s visual appeal, the ONIX LUMI B580 includes a sophisticated ARGB logo on the shroud capable of displaying up to 16.8 million colors. With customizable ARGB software, users can personalize lighting effects, adjusting colors, brightness, and patterns to suit their preferences or synchronize with other ARGB components, adding a unique and immersive touch to any build.
Silent and Long-Lasting Performance
The ONIX LUMI B580 is engineered for quiet yet powerful performance, featuring dual ball-bearing fans that ensure reliable, long-lasting cooling. With a noise level kept below 30 dBA, this card provides whisper-quiet operation—even under heavy loads—so you can focus on your work or gaming without distractions. The durable fan design enhances longevity, ensuring that your GPU remains efficient and silent over the long term.

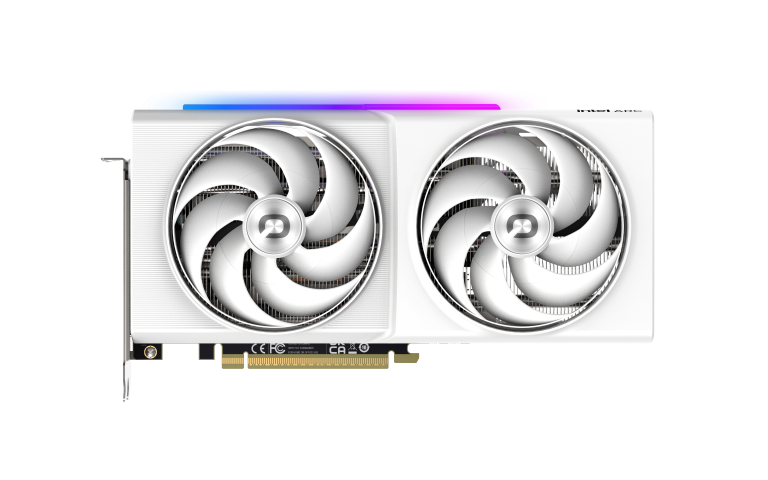

Innovation Dual-Force Fan Design for Superior Efficiency
The ONIX LUMI B580 employs a Dual-Force Fan setup, combining the high static pressure of blower-style fans with the superior airflow capability of axial fans. This hybrid design enhances thermal management, quickly expelling heat from the system to maintain optimal performance during the most demanding tasks. Whether you’re gaming, rendering, or tackling intensive workloads, the Dual-Force Fan design ensures your system stays cool and efficient.
Robust Power Protection for Enhanced Longevity
ONIX LUMI B580 has fuses added to the input of the power that prevents components burnt from any power shorts. These integrated fuses act as a frontline defense, ensuring stable power flow and extending the lifespan of your hardware.
Specifications
| SKU Number | 8346-00278 |
| Product Name | ONIX LUMI Intel® Arc™ B580 GDDR6 OC 12GB |
| GPU | Intel® Arc™ B580, Intel Xe2 Graphics Core Architecture |
| Bus Support | PCIe 4.0 x 8 |
| Graphics Clock | 2740 MHz |
| Xe Cores | 20 |
| Ray Tracing Units | 20 |
| Intel XMX Engines | 160 |
| GPU Peak Tops (Int8) | 233 |
| Memory | 12GB/192bit GDDD6, 19Gbps |
| Memory Bandwidth | 456 GB/s |
| Display Support | HDMI x1 |
| DisplayPortx 3 | Yes, Up to p to 8K, 120 Hz HDR (compressed) |
| HDMI 2.1 Support | Yes, Up to p to 8K, 120 Hz HDR (compressed) |
| DisplayPort 2.1 Support | Yes, UHBR13.5 |
| HDCP Support | Yes |
| External Power | 1 x 8 pin |
| Cooling Solution | Dual Fan, 2 ball bearing, Heatpipes |
| Form Factor | 2.2 slot, ATX |
| Board Dimension | 260 x 130 x 52 (mm) |
| Board Power | 203W |
| System Requirement |
|
